Briefly about the product

600 W ATX Power Supply
cooling: 1 fan (120 mm)
noise level 32 dBA
detachable cables
dimensions (HxWxD) 86x150x140 mm

Warranty:
NO
Brand:
GAMEMAX
Manufacturer:
Sohoo
Product Classification:
Personal Computers
Product Group:
Personal Computer
Color:
RGB-600
Size:
RGB
Date Released:
April 19th, 2019
Weight:
4.1 pounds
Dimensions:
5.5 inches x 5.9 inches x 3.4 inches
EAN:
0791265463890
UPC:
0791265463890

GENERAL CHARACTERISTICS
ATX format
Watts Nominal600 W
Real Watts480 W
Bottom Position CompatibleYes
Certificaco 80 plus80 PLUS
Wiring typeFixed cables
Hybrid ModeYes
Amps in line + 12V40 A
ColorBlack
RGB cooler lighting

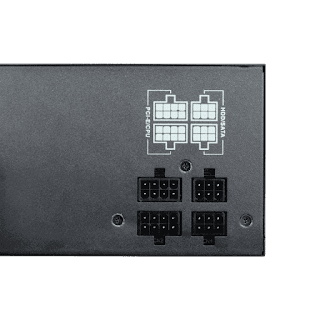

CABLING
24-pin connectorYes
4-pin CPU connector1
4pin CPU connector plus1
6-pin2 pcie connector
2-pin plus2 pcie connector
Sata5 connections
Molex3 connections
Floppy Connections1

80PLUS: APFC 80+ Plus Compliant
Efficiency Level: >80%
Noise Level: Zero (ECO-ON),<32dBA (at 100% load)
Form Factor: Intel ATX 12 V 2.31
Dimensions: 140 mm (W) x 150 mm (L) x 86 mm (H)
Fan Information: Fan Size 120 mm
Fan Control: ECO-ON/OFF
Fan Bearing: Fluid Dynamic Bearing
Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information: Modularity Wired Cabling
Cable type: Black tube shield along with colors CPU and PCIe connecor
Electrical Features: Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl.
fan: 100,000 hours
AC Input Full Range AC input (100-240Vac)
Protection: OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental: Safety and EMC CB, CCC,CE
Environmental Compliance: RoHS, WEEE, ErP Lot 6

PSU SPECIFICATION
AC INPUT: AC 100-240V 50-60Hz 9-4.5A
DC Voltage: +3.3V +5V +12V -12V +5VSB
Output: 18A 18A 40A 0.5A 2.5A
Watt: 100W 480W 6W 12.5 W

Power Supply 600W Semi Modular 80+ Bronze, GAMEMAX VP-600-M-RGB review

General characteristicsForm factorATXPower600 wattsTFX12V Version2.31Cooling system1 fan (120 mm)

ConnectorsType of connector for the motherboard20 + 4 pinNumber of sockets 4 + 4 pin CPU1Number of slots 6 + 2-pin PCI-E2Number of 15-pin SATA Connectors5Number of 4-pin IDE Connectors3

AmperageCurrent on the line +3.3 V18 ACurrent on the +5 V line18 ACurrent +12 V 140 ACurrent -12 V0.5 A+5 V Standby Current2.5 A

Additional InformationInput voltage100 - 240 VCertificate 80 PLUS80 PLUSDetachable cablesthere isNoise level32 dBASurge protectionthere isOverload protectionthere isShort circuit protectionthere isDimensions (HxWxD)86x150x140 mm
