MASTERBOX MB500 TUF GAMING EDITION
ARE YOU TUF ENUF?


TUF Gaming Camouflage Styling
Full Black Coated Body and PSU Cover
PSU Shroud Cut Out to show your PSU
4mm Thick Edge to Edge Tempered Glass Side Panel
RGB Controller and 1 to 3 Splitter Cable for RGB LED Fans





TUF GAMING CAMOUFLAGE STYLING


Marked by the TUF Gaming spirit,the MasterBox MB500 is a perfect addition to any (TUF) setup. The military styling,complete with camouflage,outfits the case as a battle-ready soldier.






FULL BLACK COATED BODY

Let your system stand out with an all-black background.




PSU SHROUD CUT OUT


A PSU shroud cut out has been implemented to make the MasterWatt TUF Gaming Edition visible through the glass side panel.




EDGE TO EDGE TEMPERED GLASS

Show off your build in style through the 4mm thick edge to edge tempered glass side panel with TUF Gaming camouflage.

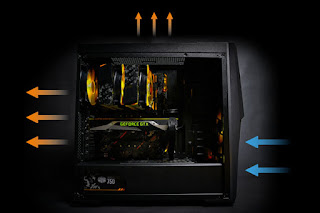

EXCELLENT THERMAL PERFORMANCE

Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.


FAN AND RADIATOR SUPPORT

Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm fans.
Rear: One 120mm fan or radiator.
All to ensure you don't have to compromise on performance




MAIN COMPONENTS CLEARANCE

The MB500 TUF Gaming case supports CPU Coolers up to a height of 163mm,Graphics Cards up to a length of 400mm and Power Supplies up to a length of 180mm.




EXPANDING THE POSSIBILITIES


The spacious interior fits all standard motherboards for your gaming needs.




SPECIFICATIONS

MODEL NUMBERMCB-B500D-KGNN-TUFAVAILABLE COLOR(S)BlackMATERIALSSteel, Plastic, Tempered GlassDIMENSIONS (LXWXH)494 x 211 x 475mmMOTHERBOARD SUPPORTATX, Micro ATX, Mini ITXEXPANSION SLOTS73.5" DRIVE BAYS2DRIVE BAYS - SSD2I/O PANEL2x USB 3.0, Audio In & Out (supports HD audio)PRE-INSTALLED FANS - FRONT2x 120mm RGB LED FanPRE-INSTALLED FANS - REAR1x 120mm RGB LED fanFAN SUPPORT - FRONT3x 120mm, 2x 140mmFAN SUPPORT - REAR1x 120mmFAN SUPPORT - TOP2x 120mmRADIATOR SUPPORT - FRONT120mm, 140mm, 240mm, 280mm, 360mmRADIATOR SUPPORT - REAR120mmCLEARANCE - CPU COOLER163mm / 6.41"CLEARANCE - GFX400mmCLEARANCE - PSU180mm/7.1"CABLE ROUTING - BEHIND MOTHERBOARD TRAY15-23mm / 0.59-0.90"DUST FILTERSFront, BottomPOWER SUPPLY SUPPORTBottom mount, ATXEAN CODE4719512071090UPC CODE884102043598SERIESMasterBox SeriesSIZEMid Tower





EDGE-TO-EDGE TEMPERED GLASS

Show off your build in style through the 4mm-thick edge-to-edge tempered-glass side panel with TUF Gaming camouflage.



EXCELLENT THERMAL PERFORMANCE

Get optimized airflow from the semi-meshed front panel and ventilation holes on top of the case.
FAN AND RADIATOR SUPPORT

Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.

Top: Two 120mm fans.

Rear: One 120mm fan or radiator.

All to ensure you don't have to compromise on performance.



MAIN COMPONENTS CLEARANCE

The MB500 TUF Gaming case supports CPU coolers up to a height of 163mm, graphics cards up to a length of 400mm and power supplies up to a length of 180mm.




EXPANDING THE POSSIBILITIES

The spacious interior fits all standard motherboards for your gaming needs, including ATX, Micro-ATX and Mini-ITX.

Cooler Master MasterBox MB500 TUF Gaming Alliance Edition ATX Mid-Tower w

ModelBrandCooler MasterSeriesMasterBox MB500 TUF EditionModelMCB-B500D-KGNN-TUF
DetailsTypeATX Mid TowerColorBlackCase MaterialSteel / Plastic / Tempered GlassWith Power SupplyNoPower Supply MountedBottomMotherboard CompatibilityMicro ATX / ATX / Mini-ITXSide Panel WindowYesLEDRGB
ExpansionInternal 3.5" Drive Bays2 (Max. 2)Internal 2.5" Drive Bays2 (Max. 4)Expansion Slots7
Front Panel PortsFront Ports2 x USB 3.0 / Audio In/Out
Cooling SystemFan OptionsFront: 3 x 120mm (2 x 120mm RGB LED fan included) or 2 x 140mm fan

Top: 2 x 120mm fan

Rear: 1 x 120mm fan (1 x 120mm RGB LED fan included)
Dimensions & WeightMax GPU Length Allowance400 mmMax CPU Cooler Height Allowance160 mmMax PSU Length224 mmDimensions (H x W x D)18.70" x 8.30" x 19.45"Weight14.00 lbs.
Additional InfoFeaturesTUF Edition: The PSU cut out and TUF paint mark the MB500 ready for battle.

Excellent Thermal Performance: Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.

RGB LED fans: Two 120mm RGB LED fans behind the front panel and one 120mm RGB LED fan in the rear are pre-installed to create an amazing lighting effect.

RGB Lighting Control: One RGB controller is included in the accessory pack. If your MB does not support the RGB control function, you can connect the RESET button cable and control the RGB lighting directly from the I/O panel.

1 to 3 Splitter Cable for RGB LED Fans: The RGB Connector Splitter and 4 pin male to male adapters are included.

Certified compatible with: ASUS, Gigabyte, MSI and ASRock motherboards.

4mm Thick Edge to Edge Tempered Glass Side Panel: Show off your build in style through the 4mm thick edge to edge tempered glass side panel.

Full Black Coating & PSU Cover: Let your system stand out with an all-black background.

Cooling Support: Up to six 120mm fans or up to 360mm radiator support in the front and and 120mm in the rear, ensure you don’t have to compromise on performance.

Compatibility Support: Support up to 400mm Graphics card, 160mm Tower CPU Cooler and 180 PSU in length.
Additional InformationDate First AvailableOctober 25, 2019
