Corsair Crystal 570X RGB Mid-Tower Case

Corsair Crystal 570X RGB Mid-Tower Case

Corsair Crystal 570X RGB Mid-Tower Case

LIGHT UP YOUR BUILD

Three included SP120 RGB LED fans and an included RGB controller light up your system with vivid, customizable LED lighting.

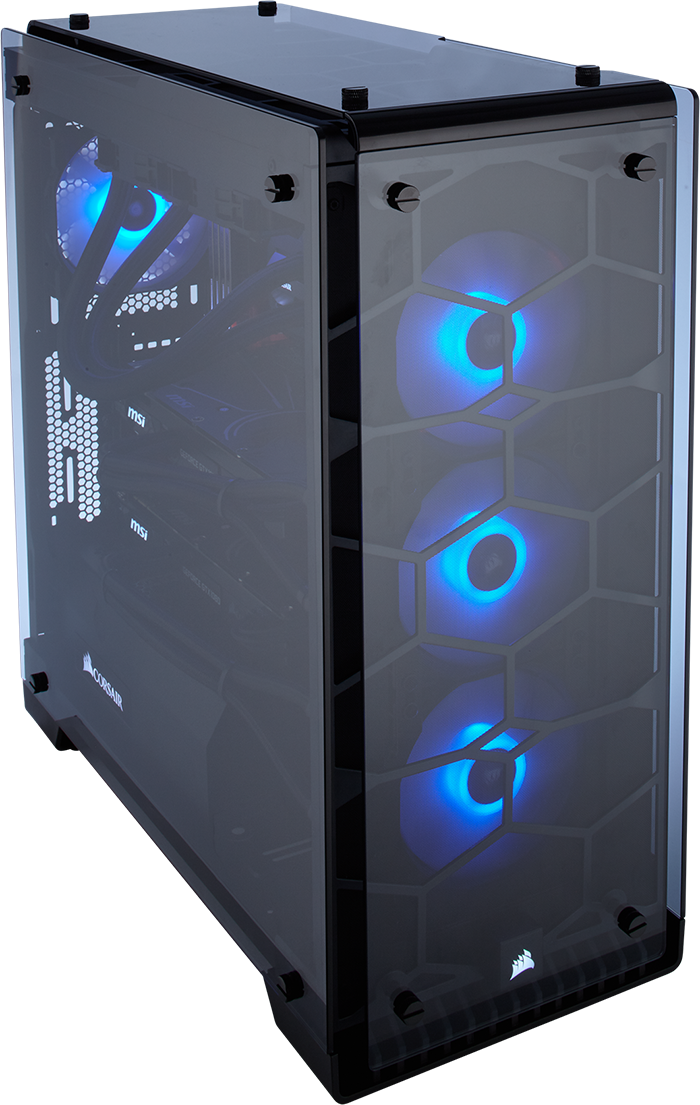

4-PANEL TEMPERED GLASS PANELS ON EVERY SIDE OF THE CASE

With tempered glass enclosing the chassis, every component of your build is on display for all to see.

IT DOESN'T JUST LOOK COOL — IT IS COOL

With a Direct Airflow Path™ design and three included SP120 RGB LED fans, your CPU and graphics card are well-supplied with cool air for lower temperatures.

ROOM FOR VIRTUALLY ANYTHING

Room for up to six 120mm case fans, and fully compatible with 360mm, 280mm, and 120mm radiators. Removable fan trays in the front and roof make it easy to fit fans and radiators, even in a finished build.

CABLES AND DRIVES OUT OF THE WAY

Two 2.5" and two 3.5" drives are positioned out of the airflow path, while dedicated cable routing channels keep things neat and tidy, so your build will look amazing inside and out.

SSD HDD

COMPATIBILITY

Mini-ITX
MicroATX
ATX

TECHNICAL SPECIFICATIONS

Case Dimensions: 480mm x 234mm x 512mm
Maximum GPU Length: 370mm
Maximum PSU Length: 225mm
Maximum CPU Cooler Height: 170mm
Case Expansion Slots: 7
Case Drive Bays: ”(x2) 3.5in (x2) 2.5in”

Case Material: Steel
Radiator Compatibility: 120mm, 240mm, 360mm
Compatible Corsair Liquid Coolers: H55, H60, H75, H80i, H90, H100i, H105, H110

Corsair Crystal 570X RGB Mid-Tower Case

Case Dimensions
480mm x 234mm x 512mm
Maximum GPU Length
370mm
Maximum PSU Length
225mm
Maximum CPU Cooler Height
170mm
Case Expansion Slots
7
Case Drive Bays
”(x2) 3.5in (x2) 2.5in”
Case Form Factor
Mid-Tower
Case Windowed
Tempered Glass
Case Warranty
Two years
iCUE enabled
No
Case Material
Steel
Radiator Compatibility
120mm, 240mm, 360mm
Compatible Corsair Liquid Coolers
H55, H60, H75, H80i, H90, H100i, H105, H110
Case Power Supply
ATX (not included)
Weight
10.9kg
Lighting
RGB
Case Drive Bays 3.5"
2
Case Drive Bays 2.5"
2

Clearly Superior
With immaculate tempered glass enclosing the entire chassis, every component of your build is on display for all to see, including three vivid SP120 RGB LED fans and a built-in LED controller.

The Final Frontier
Room for up to 6 case fans, and fully compatible with 360mm, 280mm, and 120mm radiators. Removable fan trays in the front and top of the chassis allows for additional space or mounting cooling outside of the chassis.

Four-panel tempered glass on
every side of the case

Possibly the most beautiful case CORSAIR has ever made. With tempered glass enclosing the entire chassis, every component of your build is on display for all to see.
Direct airflow path to keep your
CPU and GPU running cooler

Light up your build with brilliant LED effects. Three included SP120 RGB LED fans and included LED controller keeps your components running cool.

Room for practically anything

Create as much space as you want with room for up to 6 case fans, virtually every size radiator or by removing fan trays.
Cable management made simple

Cable routing channels with included velcro cable straps for clean cable management.

Direct Airflow Path

Drive cages are moved up and out of the path of cool air from the front intake fans and high-temperature components.

Minimal setup

With tool-free drive installation and three-point dust filter access, the CORSAIR Crystal 570X is easy to build — and even easier to keep clean. You’ll spend less time on setup and maintenance, and more time enjoying your PC.

Contents and Specifications
Package contents
Crystal Series 570X RGB ATX Mid-Tower Case
Accessory kit
Quick start guide
Compatibility
Motherboard: ATX (Up to 272mm), MicroATX, Mini ITX
Technical specifications
Dimensions (L x W x H): 480 x 234 x 512mm
Maximum GPU Length: 370 mm
Maximum CPU Cooler Height: 170mm
Maximum PSU Length: 225mm
Expansion Slots: 7
3.5” Hard Drive Bays: 2
2.5” Drive Bays: 2
Cooling Layout:
Front: 3 x 120mm or 2 x 140mm
3 x 120mm RGB LED Included
Top: 2 x 120/140mm
Rear: 1 x 120mm
Radiator Compatibility:
360mm: Front only
280mm: Front only
240mm: Front or Top
120mm: Front, Top, or Rear
Dust filters on all intakes
Front I/O Panel includes: 3-Button RGB Controller, USB 3.0 port (2), Headphone and Microphone jacks, Power on button

Learn more about the Corsair CC-9011098-WW

ModelBrandCorsairSeriesCrystal Series 570X RGBModelCC-9011098-WW
DetailsTypeATX Mid TowerColorBlackCase MaterialSteel / Tempered GlassWith Power SupplyNoPower Supply MountedBottomMotherboard CompatibilityMini-ITX / MicroATX / ATX (Up to 272mm)Side Panel WindowYesLEDRGB
ExpansionInternal 3.5" Drive Bays2Internal 2.5" Drive Bays2Expansion Slots7
Front Panel PortsFront Ports2 x USB 3.0 / 1 x Headphone Port / 1 x Microphone Port
Cooling SystemFan OptionsFront: 3 x 120mm fan (3 x 120mm RGB LED fan Included) / 2 x 140mm fan

Rear: 1 x 120mm fan

Top: 2 x 120mm / 2 x 140mm fanRadiator OptionsFront - Up to 240mm / Front - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 120mm / Top - Up to 240mm
Dimensions & WeightMax GPU Length Allowance370 mmMax CPU Cooler Height Allowance170 mmDimensions (H x W x D)20.16" x 9.21" x 18.90"Weight24.03 lbs.
Additional InfoFeaturesTempered glass panels on the front, top, and sides of the case: Possibly the most beautiful case CORSAIR has ever made. With tempered glass enclosing the entire chassis, every component of your build is on display for all to see.

Direct airflow path to keep your CPU and GPU running cooler: Three included SP120 RGB LED fans and included LED controller keeps your components running cool. Each SP120 RGB LED fan is equipped with vivid, customizable LED lights, enabling even further personalization for your build.

Room for virtually anything: Room for up to six case fans, and fully compatible with 360mm, 280mm, 240mm, and 120mm radiators. Removable fan trays in the front and top of the chassis allows for additional space or mounting cooling outside of the chassis.

Cable management made simple: Cable routing channels with included velcro cable straps for clean cable management.Package ContentCrystal Series 570X RGB ATX Mid-Tower Case
Accessory kit
Quick start guide
Additional InformationDate First AvailableNovember 23, 2016
