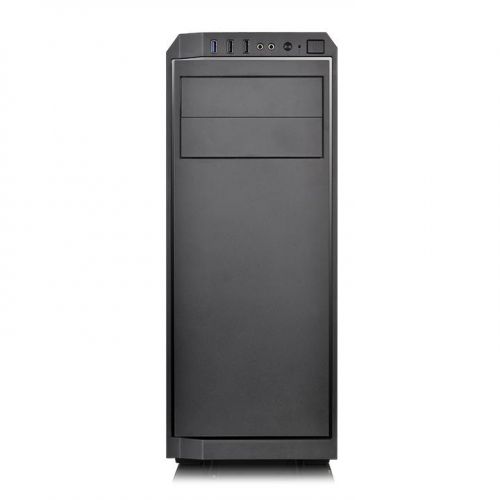

Thermaltake V100A Black ATX Mid Tower Perforated Metal Side and Top Panel Gaming Computer Case
DESIGN
Thermaltake V100 Mid-Tower Chassis
The V100 mid-tower chassis features one preinstalled 120mm fan, a perforated side panel and supports up to a standard ATX motherboard. The V100 supports the latest PC hardware and all high-end GPU solutions, guarantees on unparalleled expandability for high-end configurations and liquid cooling system to satisfy the market where users have opted for stylish PC chassis with advanced features and aesthetic appeal.
Gaming-Oriented Concept
Designed for gamers, the heightened foot-stands at the bottom help enhance airflow and the side window panel offers a direct view of interior components of the system.
Built-in PSU Cover
Equipped with a full-length PSU cover with vent hole design to hide those unsightly cables from view and give your build a sleek and tidy look, and what’s more, a better airflow.
Outstanding Expandability
The V100 supports motherboards up to standard ATX, a tower CPU cooler with maximum height 160mm, and a expansion slot VGA of up to 400mm in length without HDD rack. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.
Outstanding Ventilation
The V100’s unparalleled cooling ability offers various mounting points to support any type of cooling you can dream of including DIY/AIO liquid-cooling systems and air-cooling units. Apart from the built-in 120mm rear fan, users are allowed to install up to 360mm DIY liquid cooling radiator or two 140mm fans at the front to optimize system ventilation.

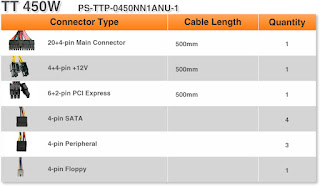

Steady output and excellent performing PSU (115V/230V switchable) with a 6+2-pin PCI-E connector included to support high-end graphic card. Build-in Over Power Protection, Over Voltage protection, and Short-Circuit protection.
Thermaltake V100A Black ATX Mid Tower Perforated Metal Side and Top Panel Gaming Computer Case
PRODUCT INFORMATIONSKU
785485
Mfr Part#
CA-1K7-00M1NN-0
UPC
841163002391
GENERAL
Series
V Series
GENERAL SPECIFICATIONS
Case Type
Mid-Tower
Color
Black
Material
Steel
Plastic
Bezel Material
Steel
Motherboard Support
ATX
mATX
mini ITX
Motherboard Tray
Fixed
Side Panel
Mesh
Cable Routing Holes
Yes
Buttons
Power
Reset
EXPANSION
External 2.5" Drive Bays
2
External 5.25" Drive Bays
3
Internal 3.5" Drive Bays
2
Internal 2.5" Drive Bays
2
Expansion Slots
7
PORTS & CONNECTORS
Front Ports
1 x Audio Out
2 x USB 2.0
1 x USB 3.0
1 x Audio In
USB 2.0
2
USB 3.0
1
Audio Ports
Audio In Jack
Audio Out Jack
COOLING SPECIFICATIONS
Supported Radiator Sizes
1 x 280 mm Front Internal
1 x 120 mm Rear Internal
1 x 360 mm Front Internal
Liquid Cooling Ready
Yes
Radiator Mounting
Front Internal
Rear Internal
Fan Bays
1 x Rear 120mm Fan Bay
2 x Top 120/140mm Fan Bays
3 x Front 120mm Fan Bays
Liquid Cooling Capable
Yes
Included Fans
1 x 120mm Fan
POWER SUPPLY
Power Supply
Not Included
Power Supply Mount
Bottom (ATX)
PACKAGE CONTENTS
What's in the Box
Computer Case, 120mm Fan, Product Manual
PHYSICAL SPECIFICATIONS
Max CPU Heatsink Height
6.30 in. (160.00 mm)
Max Power Supply Depth
6.69 in. (170.00 mm)
Max Video Card Length
15.75 in. (400.00 mm)
Height
16.10 in. (408.94 mm)
Depth
18.50 in. (469.90 mm)
Width
7.50 in. (190.00 mm)
Weight
11.02 lbs. (5.00 kg)
WARRANTY
Parts
3 Years
Labor
3 Years
V100 Fan Supporting List
Fan Compatibility List
|
|||
120mm
|
140mm
|
200mm
|
|
Front
|
3
|
2
|
|
Top
|
2
|
2
|
|
Rear
|
1
|
Thermaltake Compatible Fan
|
|||
120mm
|
140mm
|
200mm
|
|
Pure Fan Series
|
*
|
*
|
|
Luna Fan Series
|
*
|
*
|
|
Riing Fan Series
|
*
|
*
|
V100 Radiator Supporting List
Radiator Compatibility List
|
||||||
120
mm |
240
mm |
360
mm |
140
mm |
280
mm |
420
mm |
|
Front
|
*
|
*
|
*
|
*
|
*
|
|
Top
|
||||||
Rear
|
*
|
All-in-One Compatibility List
(Water 3.0 Series Floe Riing RGB Series) |
||||||
Performer
|
Pro
|
240
Series |
360
Series |
140
Series |
280
Series |
|
Front
|
*
|
*
|
*
|
*
|
*
|
*
|
Top
|
||||||
Rear
|
*
|
*
|
SPECIFICATION
More InformationP/N CA-1K7-00M1NN-01
SERIES V Series
CASE TYPE Middle tower
DIMENSION (H X W X D) 410 x 190 x 470 mm
(16.1 x 7.5 x 18.5 inch)
NET WEIGHT 5.0 kg / 11.02 lb
SIDE PANEL Perforated
COLOR Exterior & Interior : Black
MATERIAL SPCC
COOLING SYSTEM Rear (exhaust) :
120 x 120 x 25 mm fan (1000rpm, 16dBA)
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
5.25” x 2 ; 2.5” x 2
2 x 2.5“ or 3.5”(HDD Cage)
EXPANSION SLOTS 7
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front:
3 x 120mm, 2 x 140mm
Top:
2 x 120mm, 2 x 140mm
Rear:
1 x 120mm
Side:(Perforated):
1 x 120mm, 1 x 140mm
RADIATOR SUPPORT Front:
1 x 360mm, 1 x 280mm
Rear:
1 x 120mm
CLEARANCE CPU cooler height limitation: 160mm
VGA length limitation: 400mm
PSU length limitation: 170mm
Style
|
V100, V200TG RGB, V21 Cube, V31, V71TG
|
Brand
Name
|
Thermaltake
|
Size
|
ATX, E-ATX, Micro ATX
|
Item
Weight
|
12.25 pounds
|
Product
Dimensions
|
18.5 x 7.5 x 16.1 inches
|
Item
Dimensions L x W x H
|
18.5 x 7.5 x 16.1 inches
|
Color
|
Black
|
Brand
|
Thermaltake
|
