hello and welcome back today we're going to talk about the thermal texmarq series 500 watt power supply this power supplies comes with an RGB fan it has five year warranty it's cable leg ready and it also has an ultra quiet 120 millimeter fan and it's 80 plus certified so this is decent quality at least but let's spin this around and see on this side with information we can find on the fighter we can see that this RGB has turned 256 colors as well as a fulbright mode so with the RV always shines bright or pulsating modes it always pulsates it also has seven basic color options and a light off mode that can be all controlled from the button that is split on the side

there which can be good if you don't want that bright RGB at night let's take a look on the backside here on the back here we got a lot of information for an example that this car Spy is a full lot up at 500 watt and that it also has a single 12 volt rail which is good if you're gonna use with a 12 volt rail slot which for an example though goes for the CPU or PCI Express aka graphic card you also get to know that the LEDs is channel them on the fan itself and you also can see there the power efficiency for the 80 plus certification scale so you dependent on what you're gonna use is parts point four that could be good information to know that I leave that up to you you also get to know what kind of connectors that comes with and I'm gonna quickly go

through them here it has a main power factor 24 pin or 20+4 pin you also get a a 4 + 4 or ATP in the CPU power connector you get 5 SATA power connectors you got to eat I Express 6 + 2 pin connectors you get 4 4-pin molex connectors and one FDD 4 pin connector on the side area it's the same information as on the other side so we're just gonna spin them back here now to the front and what's perhaps open this up and see how it looks now when we've opened up the horsepower we get to see what's inside and like these screws that's gonna be needed to attach it to the case and we have a thermal panic paper here with some information and we have the

user manual where to connect everything what it needs and all of what you could ever need you also get the power cable of course nothing you need standard if your cable and let's think it's been on this thing here to see how it looks a little bit around for powering stuff you can see the button there for changing the RGB and the mesh netting is actually nice it's the same on the back it's on the that's on the top here cables are nicely sleeved so you will have no issue with that and otherwise it's a pretty neat well-designed power supply if you ask me let's take a look on the RGB side of things , so now when you have seen the full cycle here we're

just gonna leave it on from the change color pulsating cycle so you can see how that looks ,

Thermaltake Smart 500W

Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

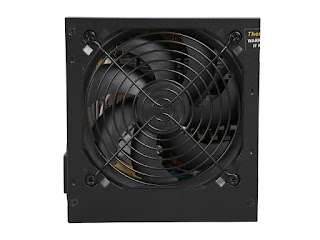

120mm Ultra Quiet Fan

Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors

Smart 500W connector’s specification as below:

MODEL / CABLE
Main Power
Connector
(20+4Pin)
ATX 12V
(4+4Pin)
Peripheral
(4Pin)
SATA
(5Pin)
PCI-E
(6+2Pin)
Floppy
(4Pin)
SMART 500W 1 1 3 6 2 1

80 PLUS Standard Certified and Haswell Ready

Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.

High-Quality Components

Thermaltake Smart 500W 80+ White Certified PSU review

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single +12V Output

Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:

Specification

P/N	PS-SPD-0500NPCW-W
Short P/N	SPD-0500P
Model	SP-500AH2NKW
Type	Intel ATX 12V 2.3
Max. Output Capacity	500W
Color	Black
Dimension (H x W x D)	86mm x 150mm x 140mm
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	16msec (minimum) within 60% load
Input current	8A max
Input Frequency Range	50 Hz - 60 Hz
Input Voltage	100Vac – 240Vac
Operating Temperature	5? to +40?
Operating Humidity	10% to 95%, non-condensing
Cooling System	120mm Fan: 1800 R.P.M. ± 10%
Efficiency	82-86% efficiency @ 20-100% load
MTBF	100,000 hrs minimum
Safety Approval	CE/CB/TUV/ UL/ FCC
PCI-E Connector	PCI-E 6+2pin x 2

LEARN MORE ABOUT THE THERMALTAKE PS-SPD-0500NPCWUS-W

ModelBrandThermaltakeModelPS-SPD-0500NPCWUS-WSeriesSmart 500W
DetailsTypeIntel ATX 12V 2.3Maximum Power500WFans1 x 120mm Intelligent Cooling FanPFCActiveMain Connector20+4Pin+12V RailsSinglePCI-Express Connector2 x 6+2-PinSATA Power Connector6SLISLI ReadyHaswell SupportYesCrossFireCrossFire ReadyModularHardlinedPower Good Signal100-500msHold-up Time16.6ms min.Efficiency80% EfficiencyEnergy-Efficient80 PLUS CertifiedOver Voltage ProtectionYesInput Voltage100 - 240 VInput Frequency Range50/60 HzInput Current8AOutput+3.3V@20A, +5V@15A, +12V@35A, -12V@0.5A, +5VSB@2.5AMTBF>100,000 HoursApprovalsCE, CB, TUV, UL, FCCDimensions3.40" x 5.90" x 5.50"Max PSU Length140 mmWeight4.25 lbs.
FeaturesConnectors1 x 20+4-pin ATX
1 x 4+4-pin EPS
2 x 6+2-pin PCI-E
6 x SATA
3 x Peripheral
1 x FloppyFeaturesCompliance with Intel ATX 12V 2.31 & EPS 12V 2.92 standards

80 PLUS Certified - 80% efficiency under typical load

Single +12V rail Design

Supports Intel C6 Status for improved efficiency

Ultra-quiet 120mm fan with intelligent temperature control

Hardlined cables for straight forward installation
