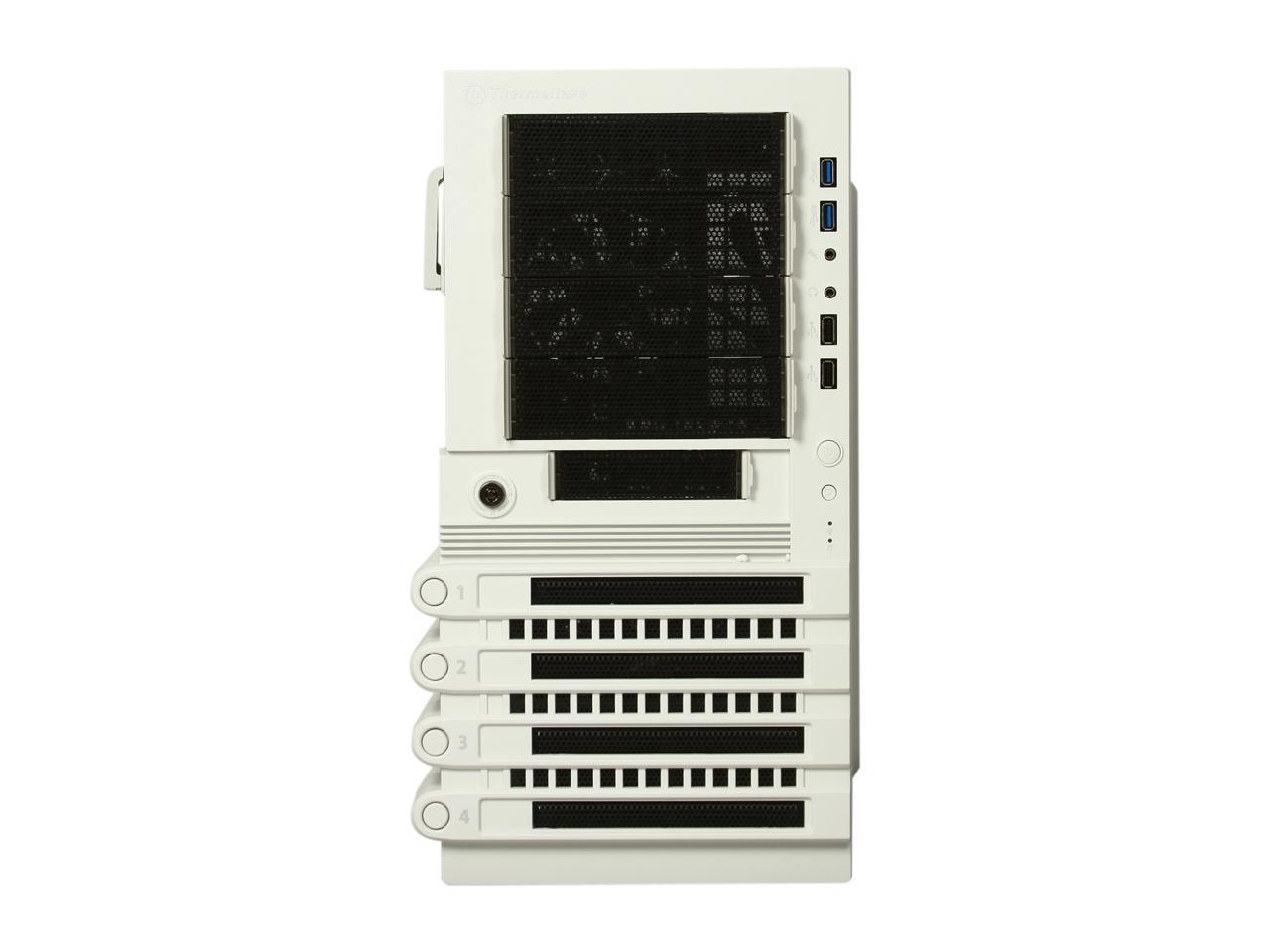

Thermaltake LEVEL 10 GTS Snow Edition White ATX Mid Tower Gaming Computer Case

Thermaltake LEVEL 10 GTS Snow Edition White ATX Mid Tower Gaming Computer Case

Thermaltake LEVEL 10 GTS Snow Edition White ATX Mid Tower Gaming Computer Case

DESIGN

- FrontSpeed 2: USB 3.0 SuperSpeed
- PitStop 4: EasySwap HDD bays
- CableClear: Advanced cable management
- S.S.S.: Smart Lock Security System
- Combat Headset Holder
- Bottom-placed PSU design for easy installation







HDD Air Cooling System
1. Front (intake) :
200 x 200 x 20 mm Blue LED fan (600rpm, 13dBA)
CPU Air Cooling System
2. Rear (exhaust) :
120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
3.Side (intake) : 200 x 200 x 30 mm (Optional)
4.Bottom (intake) : 120 x 120 x 25 mm fan (Optional)


HDD Air Cooling System
1. Front (intake) :
200 x 200 x 20 mm Blue LED fan (600rpm, 13dBA)
CPU Air Cooling System
2. Top (exhaust) :
200 x 200 x 30 mm fan x 1 or 120 x 120 x 25 mm fan x 2 (Optional)
3. Rear (exhaust) :
120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
4. Side (intake) :
200 x 200 x 30 mm (Optional)
5. Bottom (intake) :
120 x 120 x 25 mm fan (Optional)

P/N VO30006N2N
SERIES Others
MODEL VO30006N2N

CASE TYPE Mid Tower

DIMENSION (H X W X D) 462 x 233 x 510 mm
(18.2 x 9.2 x 20.1 inch)
NET WEIGHT 6.8Kg / 15.1lb

COLOR Exterior & Interior : Black & Whiite

MATERIAL SECC

COOLING SYSTEM Front (intake) :
200 x 200 x 20 mm Blue LED fan x 1 (600rpm, 13dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm,16dBA)
Top (exhaust) : (optional)
200 x 200 x 30 mm fan x 1 or 120 x 120 x 25 mm fan x 2
Side (intake) : (optional)
200 x 200 x 30 mm fan or 140 x 140 x 25 mm fan x 1
Bottom (Intake) : (optional)
120 x 120 x 25 mm

DRIVE BAYS
-ACCESSIBLE
-HIDDEN - Accessible : 4 x 5.25’’, 1 x 3.5’’
- Hidden : 1 x 3.5’’ or 2.5’’
- HDD Easy swap : 4 x 3.5’’ or 2.5’’


EXPANSION SLOTS 7
MOTHERBOARDS 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

LCS UPGRADABLE Supports 1/2”、3/8”、1/4” water tube


I/O PORT USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1

PSU Standard PS2 PSU

OTHER CPU cooler height limitation: 175mm
VGA length limitation: 315mm

Unique Design


Unique Easy Swap HDD Bays


Easy Access I/O Ports


Headset Holder


Internal USB 3.0 Connection


The Cooling System - Air Cooling



HDD Air Cooling System

1. Front (intake) : 200 x 200 x 20mm Blue LED fan (600rpm, 13dBA)


CPU Air Cooling System

2. Top (exhaust) : 200 x 200 x 30mm fan x 1 or 120 x 120 x 25mm fan x 2 (Optional)
3. Rear (exhaust) : 120 x 120 x 25mm Turbo Fan (1000rpm,16dBA)


VGA Air Cooling System

4. Side (intake) : 200 x 200 x 30mm (Optional)
5. Bottom (intake) : 120 x 120 x 25mm fan (Optional)

The Cooling System – Liquid Cooling (Optional)



HDD Air Cooling System

1. Front (intake) : 200 x 200 x 20mm Blue LED fan x 1 (600pm, 13dBA)


CPU Air Cooling System

2. Top (exhaust) : 200 x 200 x 30mm fan x 1 (600rpm, 13dBA)


VGA Air Cooling System

3. Side (intake) : 200 x 200 x 30mm fan x 1 or 140 x 140 x 25mm fan x 1(Optional)
4. Bottom (intake) : 120 x 120 x 25mm fan (Optional)

Gallery

What's in the Box

Thermaltake LEVEL 10 GTS Snow Edition White ATX Mid Tower Gaming Computer Case

Specifications

ModelBrandThermaltakeSeriesLevel 10 SeriesModelLevel 10 GTS Snow Edition
DetailsTypeATX Mid TowerColorWhiteCase MaterialSECCWith Power SupplyNoPower Supply MountedBottomMotherboard CompatibilityMicro ATX / ATXSide Panel WindowNo
ExpansionExternal 5.25" Drive Bays4External 3.5" Drive Bays1Internal 3.5" Drive Bays1 x 3.5" or 2.5"Expansion Slots7
Front Panel PortsFront PortsUSB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
Cooling System80mm FansNo120mm Fans1200mm Fans1Side Air ductNo
Dimensions & WeightDimensions (H x W x D)18.2" x 9.2" x 20.1"Weight15.1 lbs.
Additional InfoFeaturesUSB 3.0 SuperSpeed

EasySwap HDD bays (4 x 3.5" or 2.5")

CableClear: Advanced cable management

Smart Lock Security System

Combat Headset Holder

Bottom-placed PSU design for easy installation


Cooling System:
Front (intake):
200 x 200 x 20 mm Blue LED fan x 1 (600~800rpm, 13~15dBA)

Rear (exhaust):
120 x 120 x 25 mm Turbo fan (1000rpm,16dBA)

Top (exhaust): (optional)
200 x 200 x 30 mm fan x 1 or 120 x 120 x 25 mm fan x 2

Side (intake): (optional)
200 x 200 x 30 mm fan or 140 x 140 x 25 mm fan x 1

Bottom (Intake): (optional)
120 x 120 x 25 mm
Additional InformationDate First AvailableApril 20, 2017

Thermaltake Level 10 GT Snow Edition
Or should we call it "Storm Trooper White"


Thermaltake claims the Level 10 GT is targeted for "High Performance Gaming" and "Super Airflow Chassis" applications, which would seem rather fitting. There are three mammoth 200mm fans in this case, as well as a 140mm rear exhaust fan and the option for a bottom 120mm intake fan. If you're looking for increased airflow, the Level 10 GT should offer up more than just a cool breeze. Two of those 200mm fans are also covered by removable, washable air filters, thankfully. More on this later. You'll also notice in the spec list above, that the case only weighs about 28lbs. With the handle on the top of this chassis, for a full tower, it's actually fairly easy to move around. Finally, if you thought the original Level 10 GT wasn't bold enough, as you can see, our Snow Edition model here pretty much jumps out at you. We call it the "Storm Trooper" around the lab. Contrasted in flat black and white, this chassis would easily blend into the set of the George Lucas classic.

Exterior Design, Materials and Worksmanship
The Level 10 GT Snow Edition is all about contrast, from its straight-up black and white color scheme to the carved compartments that mark each of the major component areas. And yeah, the original Level 10 and Level 10 GT black version chassis stood out a bit but, as you can see, the Level 10 GT Snow Edition is a major league head-turner.







The 5.25-inch drive bays are of a toolless design that allow you to snap optical drives into place with a locking mechanism. This is a quality design approach that makes the installation process that much easier and plenty robust. The Level 10 GT's 3.5-inch hard drive bays are a hot-swap style setup that allow you to release a drive sled with the push of a button. The sleds also have 2.5-inch mounting holes to afford you the ability to install SSDs or any 2.5" form-factor drive for that matter. The only small complaint we have with these sleds are that they're made of an all-plastic construction and they feel flimsy. Also, for whatever reason, the drive rack doesn't do a good job of dampening noisy hard drive head access during operation, unfortunately. On the up-side, the entire rack is setup with a 5-plug SATA power cable that connects each bay nicely. Just plug a single 4-pin molex connector into your power supply, connect your SATA data cables and you're done. This is a really nice feature, because it always seems that cable management for SATA power cables is a challenge. More on cable management inside the Level 10 GT, later.





Count 'em up; that's four USB 2.0 ports, an eSATA port and two USB 3.0 ports, as well as headphone and microphone jacks, all setup for front and top panel access. Nice. You also get a fan speed switch which allows for control of those huge 200mm fans in the case. On high, you can pump a ton of fresh air into this thing, for not a whole lot more noise. On low, the chassis is whisper quiet. You also are provided the luxury of removable, washable fan filters for the side intake fan and in the bottom of the chassis, where an optional 120mm fan can reside, next to your power supply and its intake fan.

Finally, on the top control panel of the Level 10 GT there is also a Fan LED control switch that allows you to set lighting color for each of the three 200mm fans inside the chassis. You can choose between blue, red, green, a cycle of all three or no lighting at all. You want glam and bling, this classy chassis has it.

Interior Design and Layout
When it comes to the interior design and layout, the Level 10 GT, no matter which color you choose, is a lesson in design and build simplicity. From its clean cable management features to ample and proper spacing between component areas, the Level 10 GT sets up easier than just about any full-sized case we've monkeyed with to date. Incidentally, the Level 10 GT also supports Extended ATX motherboards, if you're a sucker for punishment in that regard.





The side panel door of the Level 10 GT is actually hinged and is easily removable just by lifting it off its hinge. Thermaltake also designed a simple contact connector between the door and the main chassis, that connects the side intake fan to a power source, without the fuss or muss of a cable run. Again, it's the little things like this that make all the difference. The side intake fan also has a set of louvers behind it that can be positioned with a small lever on the exterior of the case. With this, you can direct airflow from this fan, inside the case.



Rubber grommet-lined cable pass-throughs in various strategic areas inside the case and out the back panel, serve for both interior cable management and flow tubing for water cooling. Again, setting up this case for impeccable, clean cable management and uninhibited airflow and cooling, couldn't be any easier.



Don't be distracted by the cool blue 200mm fan; look at that motherboard tray socket area cutout!


Even backside cable management behind the motherboard tray is easily accommodated by the back panel design. It's a slide-off panel type but Thermaltake left plenty of room behind the motherboard tray, to stuff that 24-pin ATX power cable and anything else you want in there and out of site. Also, take note of the motherboard socket area cutout in the motherboard tray. This allows for a bit more air flow around the backside of the motherboard socket area. Once again, we're impressed with the forethought that went into this design.

Acoustics, Thermals and The Wrap-up
Acoustic and Thermal Performance: In terms of general performance, the Thermaltake Level 10 GT ran components in our system cool and quietly. We setup a fairly stout Core i7 970 six-core chip, along with an AMD Radeon HD 6850 graphics card, 6GB of RAM and a WD Raptor 150GB hard drive for testing purposes.

Core i7 970 Six-Core, Intel X58 Motherboard, 6GB of RAM, 10K RPM Hard Drive - Cool and Quiet

The large 200mm fans, on the system's Low setting, move massive amounts of air without having to spin at high RPMs. At this setting, the Level 10 GT is easily one of the quietest full-sized ATX cases we've worked with. For extreme cooling and heavy overclocking requirements, even on the Level 10 GT's High fan speed setting, fan noise, or lack thereof, is a strong point for this case.



Striking, distinctive, badass; love it or hate it but you can't say it looks like any other PC case.



The Thermaltake Level 10 GT Snow Edition performance PC case is definitely not for those that like a subdued, minimalistic look. Its over-the-top appearance may put off some, but for the enthusiast DIY set, this case definitely makes a statement with its cool-factor alone. The good news is, the Level 10 GT Snow Edition isn't just a cool looking case. It's also well-built for the most part and definitely well thought-out in terms of its design. Ease of system build, great airflow and clean cable management were clearly a priority when Thermaltake went to the drawing board with this chassis. You can currently find the Level 10 GT Snow Edition at places like J&R and Amazon, for $277 or so. If you want to tame things down a bit, go with the black standard version for about $20 less. At this price, the Level 10 GT Snow Edition is definitely a premium case, but if you're looking to build a killer gaming rig and aren't shy of taking a walk on the wild side, this case definitely has the chops.

pros Great looking showcase design
Excellent cable management features
Great airflow setup with stock fans
Lots of external ports pre-wired
Cool lighting accents


consLight plastic hard drive sleds
Noisy hard drive rack
Pricey but worth it
